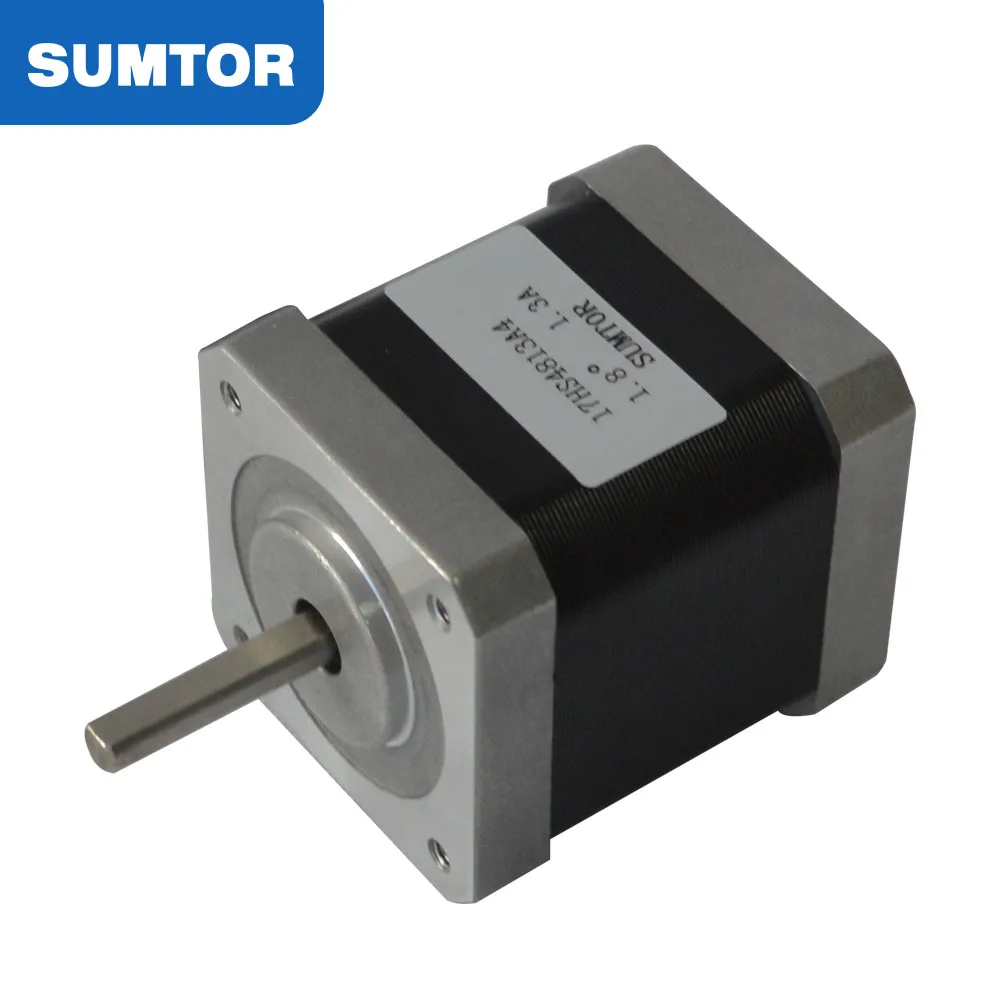

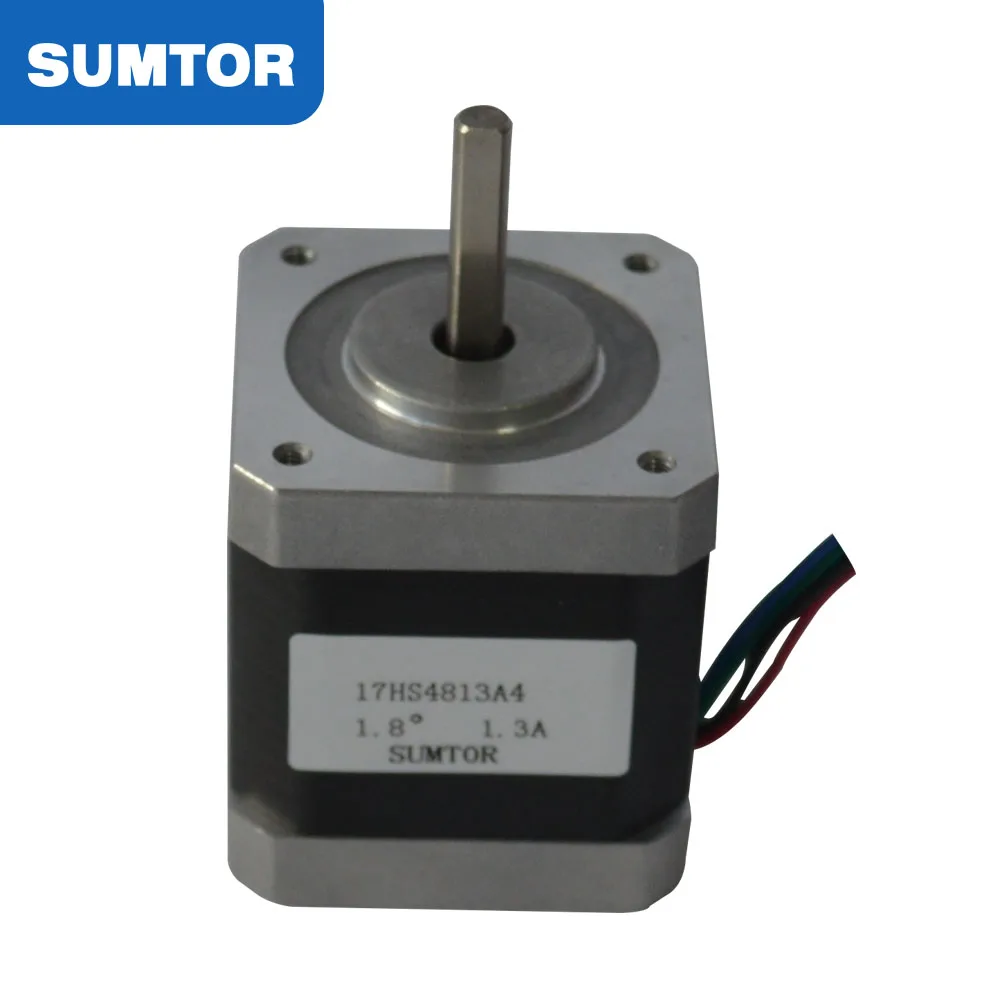

nema 17 1.8 degree 48mm 1.3A stepper motor 42HS4813A4 in stock
Hot sale products
Hot sale in
-
1 - 9 Pieces
$7.00
-
10 - 99 Pieces
$6.80
-
>=100 Pieces
$6.50
- Step Angle(degrees):
- 1.8°
- Holding Torque:
- 52N.cm
- Samples:
- Lead Time:
-
Quantity(Pieces) 1 - 10 11 - 100 >100 Est. Time(days) 7 9 Negotiable
- Customization:
-
Customized logo (Min. Order: 5 Pieces)
Product Details
Company Profile
Overview
Quick Details
- Place of Origin:
-
Jiangsu, China
- Brand Name:
-
Sumtor
- Model Number:
-
42HS4813A4
- Phase:
-
2
- Type:
-
Hybrid
- Current / Phase:
-
1.3A
- Certification:
-
ce, RoHS
- Name:
-
nema 17 stepper motor
- Holding torque:
-
52N.cm
- Detent Torque:
-
2.6N.cm
- Rated Voltage:
-
4.16V
- Motor length:
-
48mm
- Lead wire:
-
4
- Phase Inductance:
-
5.5mH
- Phase Resistance:
-
3.2ohm
- Rotor Inertia:
-
82g.cm2
- Applied driver:
-
M420B
Packaging & Delivery
- Packaging Details
- Normal Packing
Package:Foam + carton + waterproof membrane + wooden pallet
- Picture Example:
-
- Lead Time :
-
Quantity(Pieces) 1 - 10 11 - 100 >100 Est. Time(days) 7 9 To be negotiated
Online Customization
Product Description
Title:nema 17 1.8 degree 48mm 1.3A stepper motor 42HS4813A4 in stock
The operation of the stepper motor must be driven by an electronic device. This device is a stepper motor driver, which converts the pulse signal from the control system into the angular displacement of the stepper motor.

MOQ | 2 set |
Sample time | 3-7 days |
Production time | 7-15 days |
Certification | CE & ROHS |
After-sales | 12 months |
delivery time | after get the money if the good is in stock |

Description of motor
Features:
1. motor length: 48mm
2. nema 17 plug-in line type stepper motor
3. current: 1.3A
Quality assurance:
1.All stepper motor have CE and ROHS certification
2.All motors are tested by a toasting machine for 72 hours
3.All the motors will be shipped after testing

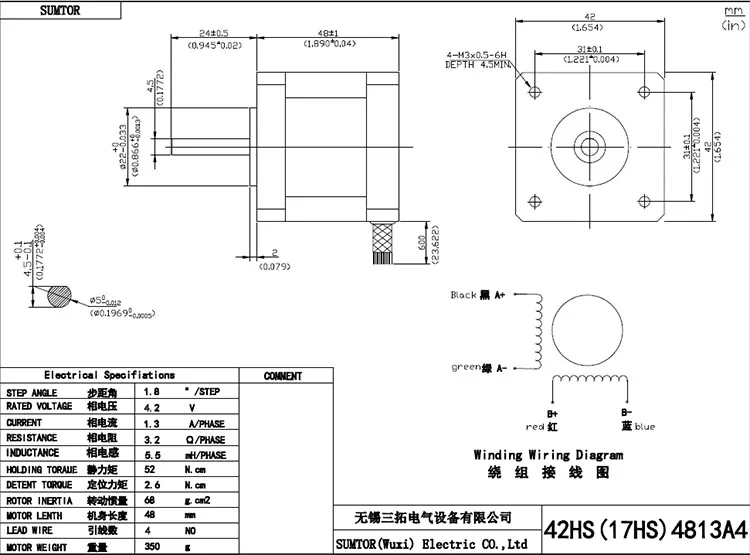

Nema 42 stepper motor Electrical Specifications
Series Model | Step Angle (°) | Rated Current (A) | Phase Resistance (Ω) | Phaes Inductance (mH) | Holding torque (N.cm) | Detent Torque (N.cm) | Rotor Inertia (g.cm2) | Motor Lenth (mm) | Lead Wire (NO) | |||||||||
42HS2404A4 | 1.8 | 0.4 | 30 | 30 | 20 | 1.6 | 30 | 24 | 4 | |||||||||
42HS2806A4 | 1.8 | 0.6 | 8 | 10 | 12 | 1.6 | 30 | 28 | 4 | |||||||||
42HS3404A4 | 1.8 | 0.4 | 30 | 35 | 28 | 1.6 | 34 | 34 | 4 | |||||||||
42HS3413A4 | 1.8 | 1.3 | 2.2 | 2.8 | 27 | 1.6 | 34 | 34 | 4 | |||||||||
42HS3417A4 | 1.8 | 1.7 | 1.1 | 1.8 | 28 | 1.6 | 34 | 34 | 4 | |||||||||
42HS4004A4 | 1.8 | 0.4 | 30 | 60 | 40 | 2.2 | 54 | 40 | 4 | |||||||||
42HS4013A4 | 1.8 | 1.3 | 3 | 5.1 | 45 | 2.2 | 54 | 40 | 4 | |||||||||
42HS4017A4 | 1.8 | 1.7 | 1.5 | 2.8 | 41 | 2.2 | 54 | 40 | 4 | |||||||||
42HS4813A4 | 1.8 | 1.3 | 2.2 | 5.5 | 52 | 2.6 | 68 | 48 | 4 | |||||||||
42HS4817A4 | 1.8 | 1.7 | 1.8 | 3.2 | 55 | 2.6 | 68 | 48 | 4 | |||||||||
42HS4804A6 | 1.8 | 0.4 | 30 | 38 | 35 | 2.6 | 68 | 48 | 4 | |||||||||
42HS6015A4 | 1.8 | 1.5 | 4 | 9 | 70 | 3.6 | 80 | 60 | 4 | |||||||||
42HS6315A4 | 1.8 | 1.5 | 3 | 6.5 | 79 | 4 | 85 | 63 | 4 | |||||||||
42HS3813A4CEL06 | 1.8 | 1.3 | 2.9 | 5.0 | 40 | 2.0 | 47 | 38 | 4 | |||||||||
42HS4013A4CEL06 | 1.8 | 1.3 | 3 | 5.1 | 45 | 2.2 | 57 | 40 | 4 | |||||||||
42HS4813A4CEL06 | 1.8 | 1.3 | 3.2 | 5.5 | 55 | 2.6 | 82 | 48 | 4 | |||||||||
*Tips: We can manufacture products according to custorm's requirments. | Waist | 24.4 | 26 | 27.9 | 29.9 | 31.9 |
Driver parameter | ||||||||
Model | M422 | |||||||
Input Voltage | Input 10~40VDC (Limit value) | |||||||
Input Current | Less than2.2A | |||||||
Output Current | 0.42A~2.2A(PEAK) | |||||||
Power | 40W | |||||||
Temperature | Operating Temperature-10~45℃; Storage Temperature-40℃~70℃ | |||||||
Humidity | No dew, no water | |||||||
Gas | Forbidden to have combustible gas and conductive dust | |||||||
Weight | 70g |
Installation method

Winding

Stator waveform caheck

Wiring

Magnetizing

Characteristics check

Shaft height check

Visual inspection

Labelling

Packaging

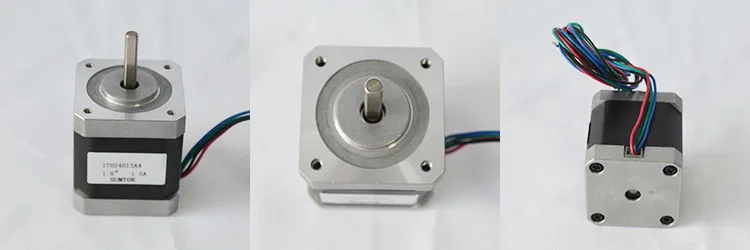

Detailed Images
material:
Shaft: stainless steel 303; end cap: die-cast aluminum parts; stator: silicon steel sheet;
