nema 17 planetary reduction geared hybrid box ratio 5:1 42XG05
Hot sale products
Hot sale in
-
1 - 9 Pieces
$28.00
-
10 - 99 Pieces
$27.00
-
>=100 Pieces
$23.00
- Rated Power:
- 16w
- Model Number:
- 42XG05
- Samples:
- Lead Time:
-
Quantity(Pieces) 1 - 10 11 - 100 101 - 1000 >1000 Est. Time(days) 14 20 30 Negotiable
- Customization:
-
Customized logo (Min. Order: 10 Pieces)
Product Details
Company Profile
Overview
Quick Details
- Applicable Industries:
-
machinery
- Gearing Arrangement:
-
Planetary
- Output Torque:
-
3.5N.m
- Input Speed:
-
3000rpm
- Output Speed:
-
600rpm
- Place of Origin:
-
China
- Brand Name:
-
Sumtor
- Name:
-
stepper motor planetary gearbox
- Model:
-
42XG05
- Ratio:
-
5:1
- Length:
-
41mm
- Rated Load:
-
3.5Nm
- Max Load:
-
6N.m
- Efficiency:
-
96%
- Backlash:
-
≤15arcmin
- Weight:
-
0.4kg
- Product Keywords:
-
gearbox ratio 5:1, nema 17 geared hybrid, planetary box
Product Certification
- RoHS Certified.
- Valid from 2014-05-19 until 2049-12-31
Supply Ability
- Supply Ability:
- 500 Piece/Pieces per Week
Packaging & Delivery
- Packaging Details
- 6pcs in one carton
16 carton in one pallet
- Port
- Shanghai
- Picture Example:
-
- Lead Time :
-
Quantity(Pieces) 1 - 10 11 - 100 101 - 1000 >1000 Est. Time(days) 14 20 30 To be negotiated
Online Customization
Video Description
Title
nema 17 planetary reduction geared hybrid box ratio 5:1 42XG05
Related Products

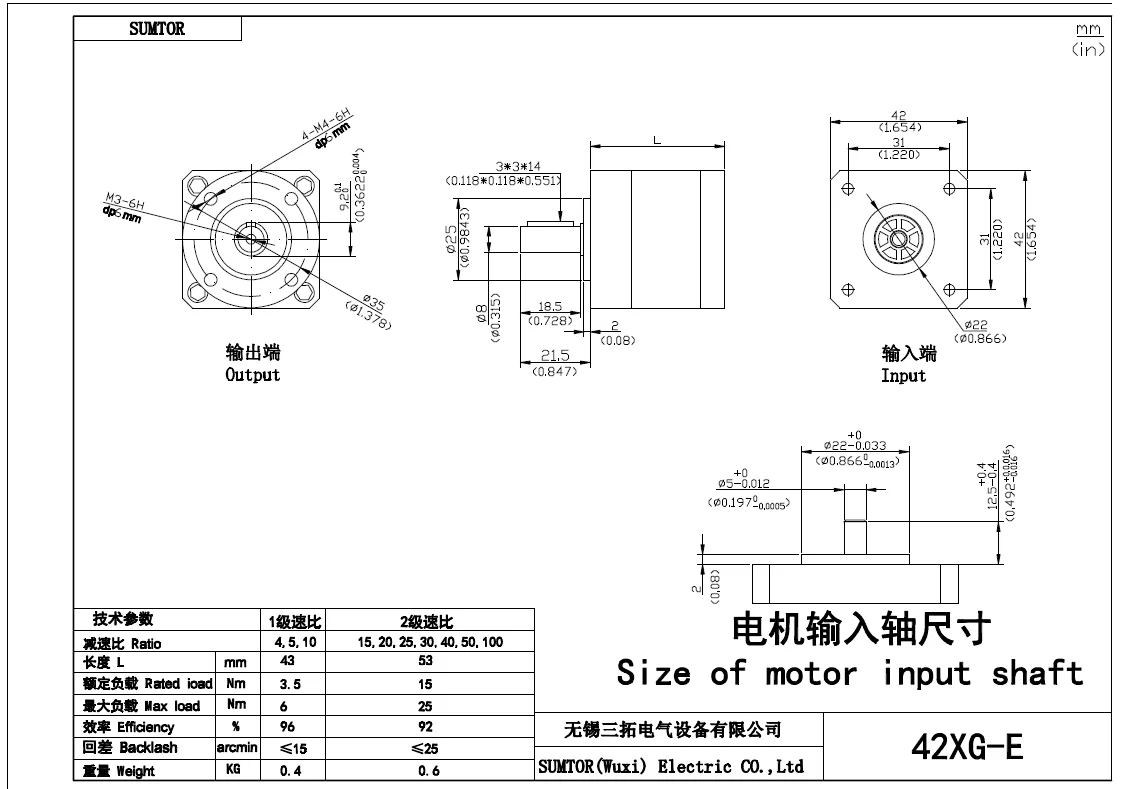

The reducer is 43mm length with 3.5N.m rated load and 96% efficiency.we also have ratio 4,10,15,20, 25,30,40,50,100

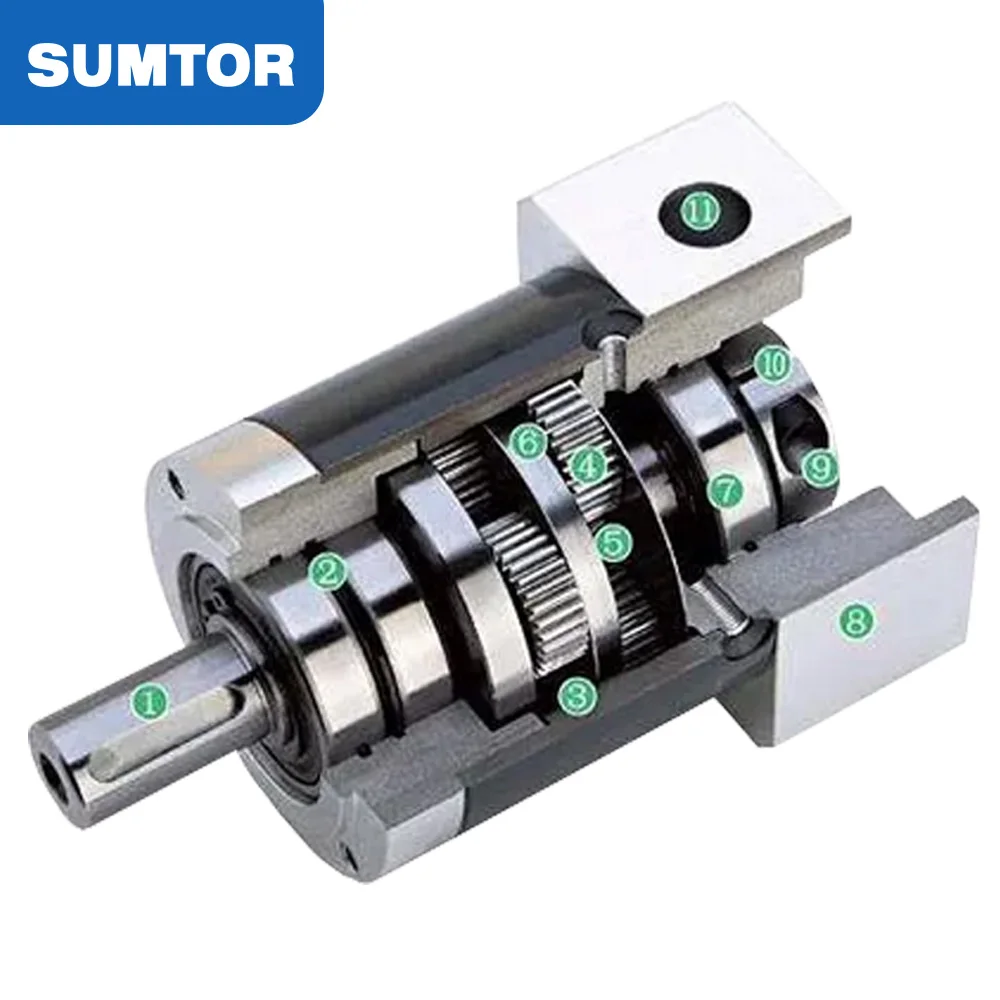

(1) Output shaft (2) Output shaft bearing (3) Internal gear (4) Planetary gear (5) Sun gear (6) Full needle roller bearing (7) Sun gear bearing (8) Adapting motor flange (9 ) Precision clamping system (10) clamping ring (11) assembly hole

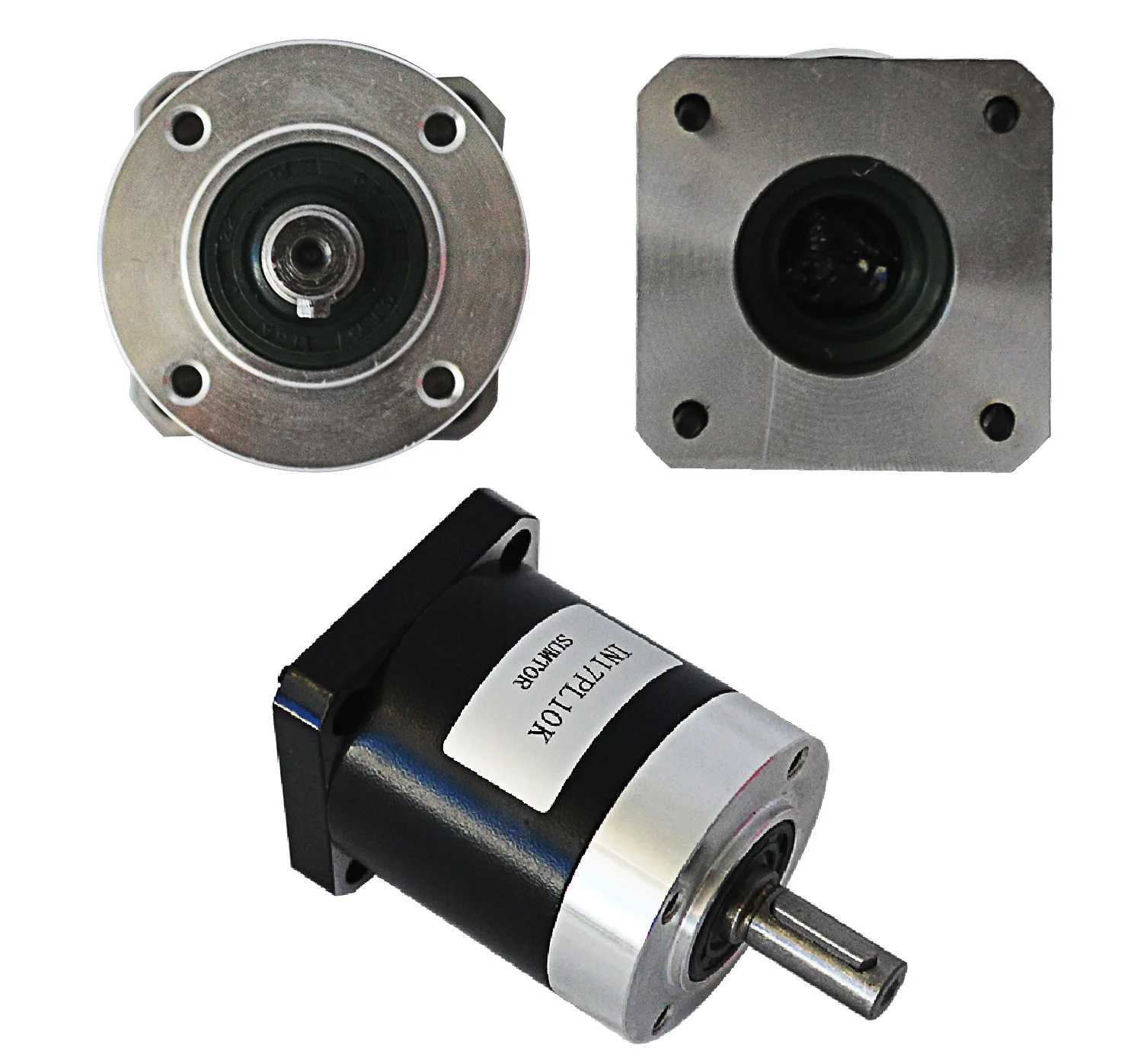

Details Images
with 1:4,1:5,1:10,1:15,1:20,1:25,1:30,1:40,1:50,1:100 ratio |
with 8mm output shaft diameter |


Installation method

Step 1: Confirm the specifications of the motor and reducer, and wipe the surface clean

Step 2: Remove the bottom dust cover

Step 3: Combine the base of the reducer with the motor head to align the edges

Step 4: Lock the four corners of the base that match the motor to the reducer with screws

Step 5: Using a wrench, firmly lock the 2 screws on the locking ring

Step 6: Reinstall the dust cover
Company Profile




Certifications




Packing and Delivery



Tips:
1.We have ready stepper motor in stock.We are support delivery in 3 days.
2.Choose shipping methods to reduce the shipping cost.
3.If you are not familiar with customs clearance,we can arrange door to door delivery for you.
