42XG10 high precision 10:1 nema 17 stepper motor gear

  • 2 - 9 Pieces
    $32.00
  • 10 - 49 Pieces
    $30.00
  • >=50 Pieces
    $28.50
Rated Power:
16w
Model Number:
42XG10
Samples:
$32.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Lead Time:
Quantity(Pieces) 1 - 20 21 - 50 51 - 100 >100
Est. Time(days) 14 20 30 Negotiable
Customization:
Customized logo (Min. Order: 10 Pieces)
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
stepper motor
Gearing Arrangement:
Planetary
Output Torque:
3.5N.m
Input Speed:
600rpm
Output Speed:
60rpm
Place of Origin:
Jiangsu, China
Brand Name:
Sumtor
Name:
stepper motor planetary gearbox
Model:
42XG10
Ratio:
10:1
Length:
41mm
Rated Load:
3.5Nm
Max Load:
6N.m
Efficiency:
96%
Backlash:
≤15arcmin
Weight:
0.4kg
Product Keywords:
stepper motor gear,stepper gear motor,small geared stepper motor
Product Certification certification
RoHS Certified.
Valid from 2014-05-19 until 2049-12-31
Supply Ability
Supply Ability:
2000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
6pcs in one carton
16 carton in one pallet
Port
Shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 20 21 - 50 51 - 100 >100
Est. Time(days) 14 20 30 To be negotiated
Video Description
42XG10 high precision 10:1 nema 17 stepper motor gear
Product Description
IN17PL10K ( nema 17 planetary gearbox rate: 10:1)
With ratio 04,05,10,15,20,30,40,50,100
with  economic model and high precision type

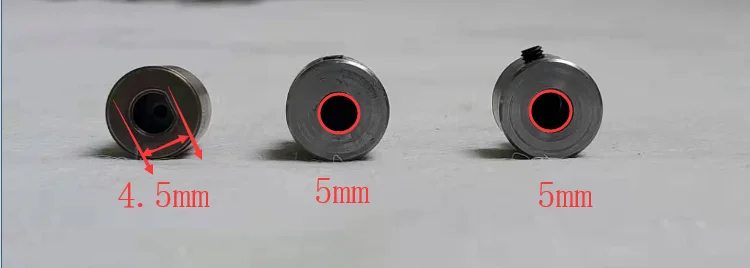

The 42XG reducer shaft diameter is 5mm


1.NEMA 42 planetary gear reducer 2.Rate 10:1 3.Speed 600-800RPM High precise planetary reducer gearbox. Ratio include:1:5 1:10 1:15 1:20 1:25 1:30 1:40 1:50 1:100. Mating motor : 42HS4013A4,42HS4813A4,42HS6015A4,42HS6315A4. Mating driver: M420B M415B



Product details
Application Areas
Production process
winding line
stator waveform check
wiring
R cover assembly
F cover assembly
driver a screw
magnetizing
characteristic check
axis height check
visual inspection
attach a label
packaging
Our certification
Package and Delivery
