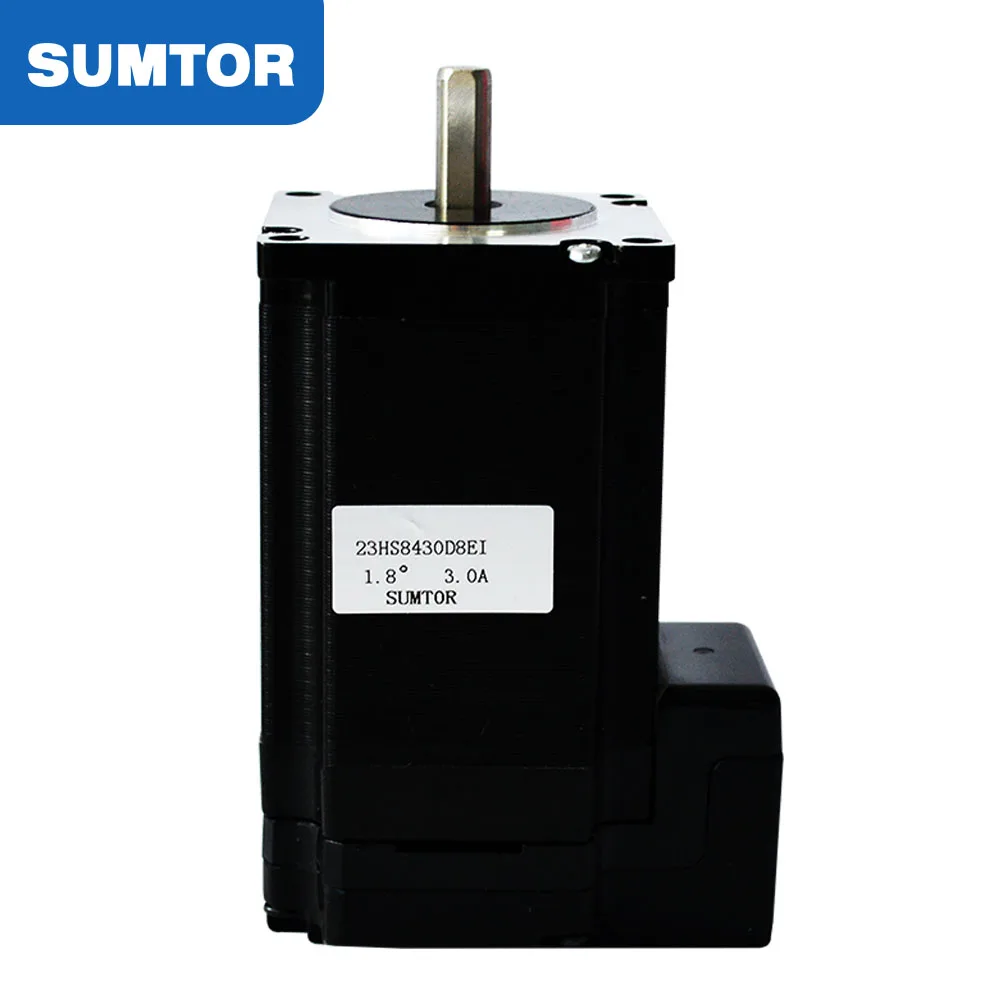

nema 23 84mm 3A integrated stepper motor and driver plc control
Hot sale products
Hot sale in
FOB Reference Price:Get Latest Price
$40.62 - $41.25
/ Piece
| 1 Piece/Pieces (Min. Order)
- Step Angle(degrees):
- 1.8°
- Holding Torque:
- 1.9N.m
- Samples:
- Lead Time:
-
Quantity(Pieces) 1 - 50 51 - 1000 >1000 Est. Time(days) 15 30 Negotiable
Product Details
Company Profile
Overview
Quick Details
- Place of Origin:
-
Jiangsu, China
- Brand Name:
-
Sumtor
- Model Number:
-
57HS8430D8EI
- Phase:
-
2
- Type:
-
Hybrid
- Current / Phase:
-
3A
- Certification:
-
ce, RoHS
- Product name:
-
nema 23 integrated stepper motor
- Model:
-
57HS7630D8EI
- Power Voltage:
-
3.13V
- Current:
-
3A
- Motor Length:
-
84+21.6mm
- Rotor Inertia:
-
580g.cm2
- Holding Torque:
-
1.9N.M
- Phase resistance:
-
1.2Ω
- Phase Inductance:
-
4.5mH
- Product Keywords:
-
integrated stepper driver,nema 23 stepper motor,integrated
Supply Ability
- Supply Ability:
- 2000000 Piece/Pieces per Year integrated stepper driver
Packaging & Delivery
- Packaging Details
- 6pcs in one carton
16 carton in one pallet
- Port
- Shanghai Port
- Picture Example:
-
- Lead Time :
-
Quantity(Pieces) 1 - 50 51 - 1000 >1000 Est. Time(days) 15 30 To be negotiated
Online Customization
Video Description
Title
nema 23 84mm 3A integrated stepper motor and driver plc control
Products Description

Model | 57HS8430D8EI |
Step angle | 1.8° |
Current | 3.0A |
Holding torque | 2.2N.m |
Sample time | 3-7 days |
production time | 7-15 days |
certification | CE & ROHS |
Warranty | 12 months |
After-sales Service | Online support, Video technical support, Product Manual |
delivery time | after get the money if the good is in stock |

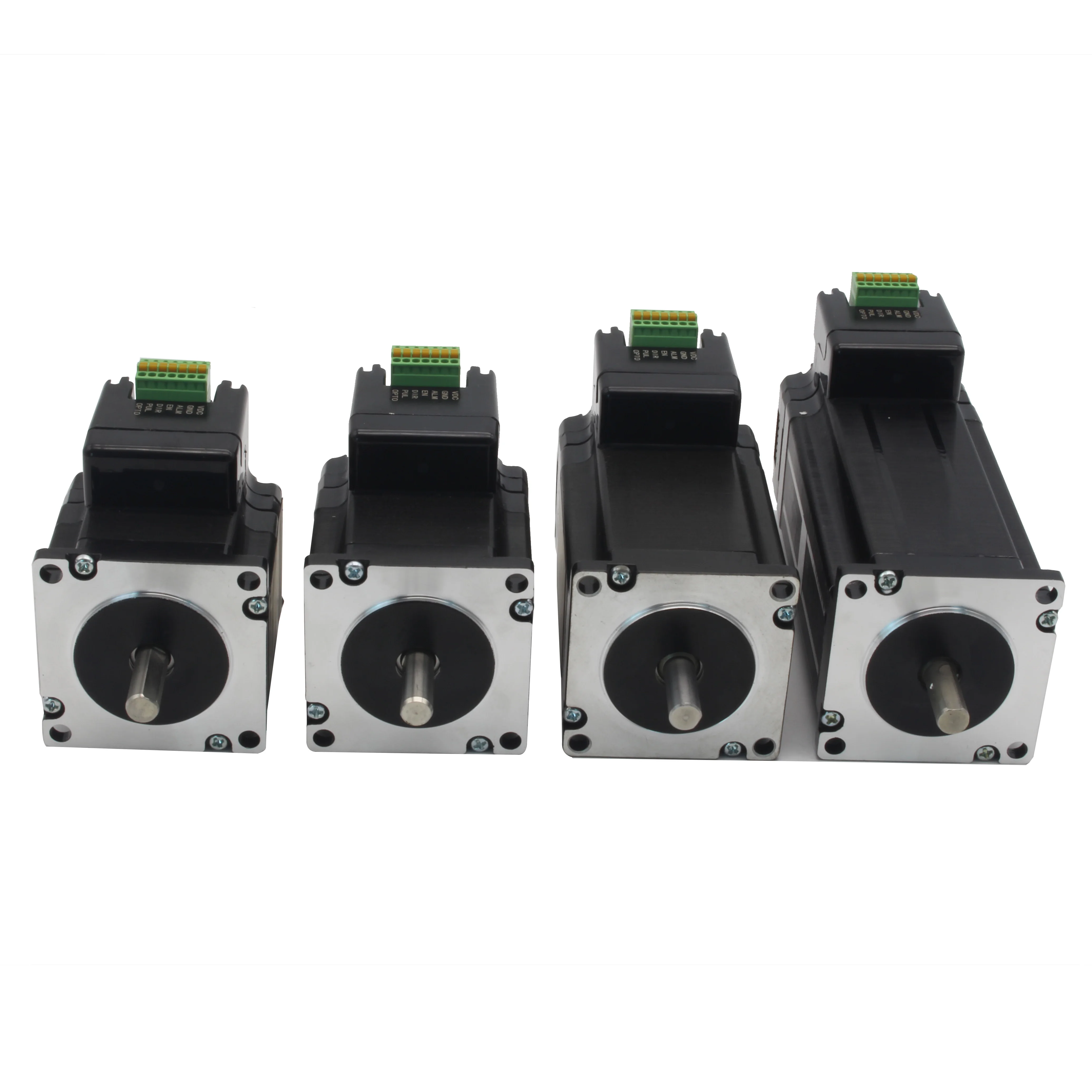

Modle | Motor Length | Current | Holding Torque |
57HS41D8EI | 42.9+21.6 | 2.5A | 0.55N.m |
57HS5630D8EI | 53.9+21.6 | 3.0A | 1.2N.m |
57HS7630D8EI | 77.9+21.6 | 3.0A | 1.8N.m |
57HS7630D8EIC(plug-in line) | 77.9+21.6 | 3.0A | 1.8N.m |
57HS84D8EI | 83.9+21.6 | 2.5A | 2.2N.m |
57HS8430D8EI | 83.9+21.6 | 3.0A | 2.2N.m |
57HS8430D8EIC(plug-in line ) | 83.9+21.6 | 3.0A | 2.2N.m |
57HS10042D8EI | 99.9+21.6 | 4.2A | 2.5N.m |
57HS112D8EI | 113.4+21.6 | 3.0A | 3.0N.m |
57HD11242D8EI | 113.4+21.6 | 4.2A | 3.0N.m |
57HS11242D8EIC(plug-in line) | 113.4+21.6 | 4.2A | 3.0N.m |
Overview
1. Bipolar constant current chopping current control.
2. Subdivided interpolation function, the motor runs smoothly.
3. Flexible subdivision settings to meet more occasions.
4. The command signal is compatible with 3.5~24V, no series resistor is needed.
5. The stepping motor has its own locking device to prevent axial movement.
6. Widely used in cutting plotters, inkjet printers, plotters, 3D printers
Small automated machines.


Characteristic
1. Rated voltage: 24~48VDC±10%
2. Rated current: MAX 4.5A
3. Current setting: self-identification of motor phase current to achieve optimal matching

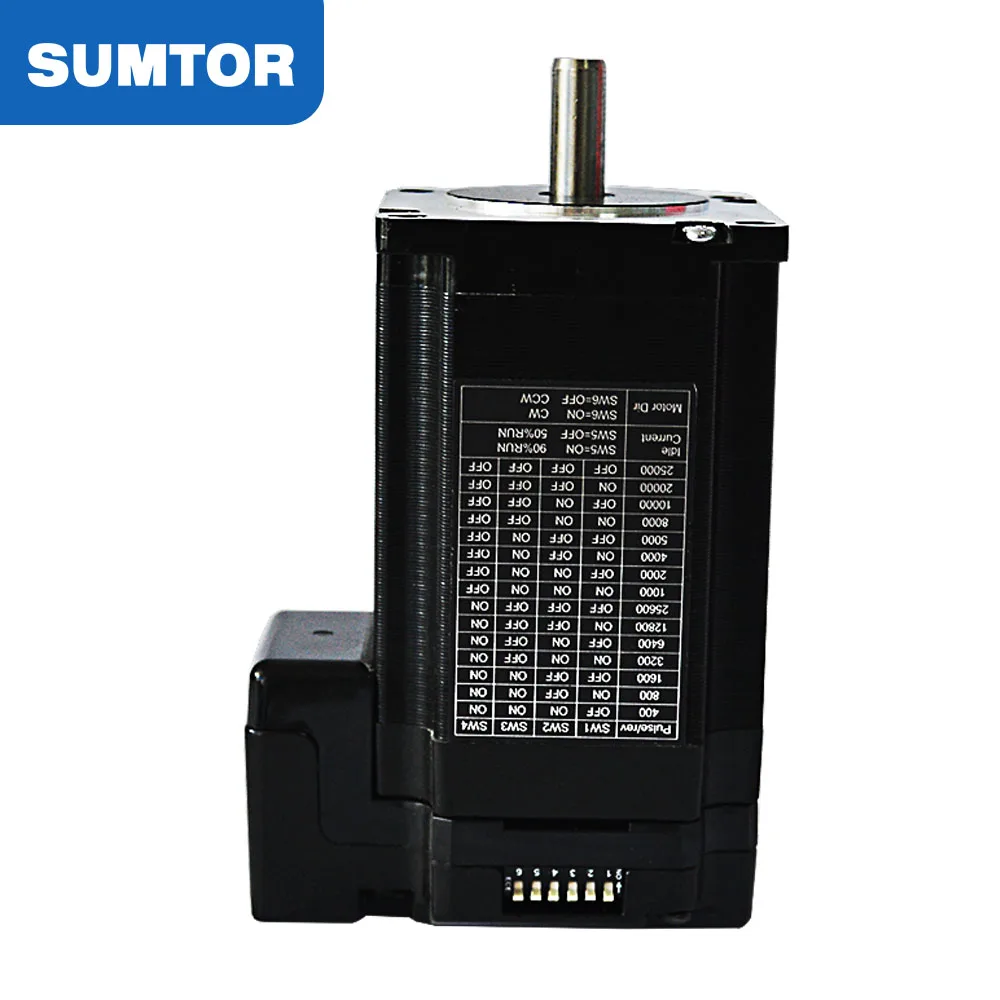

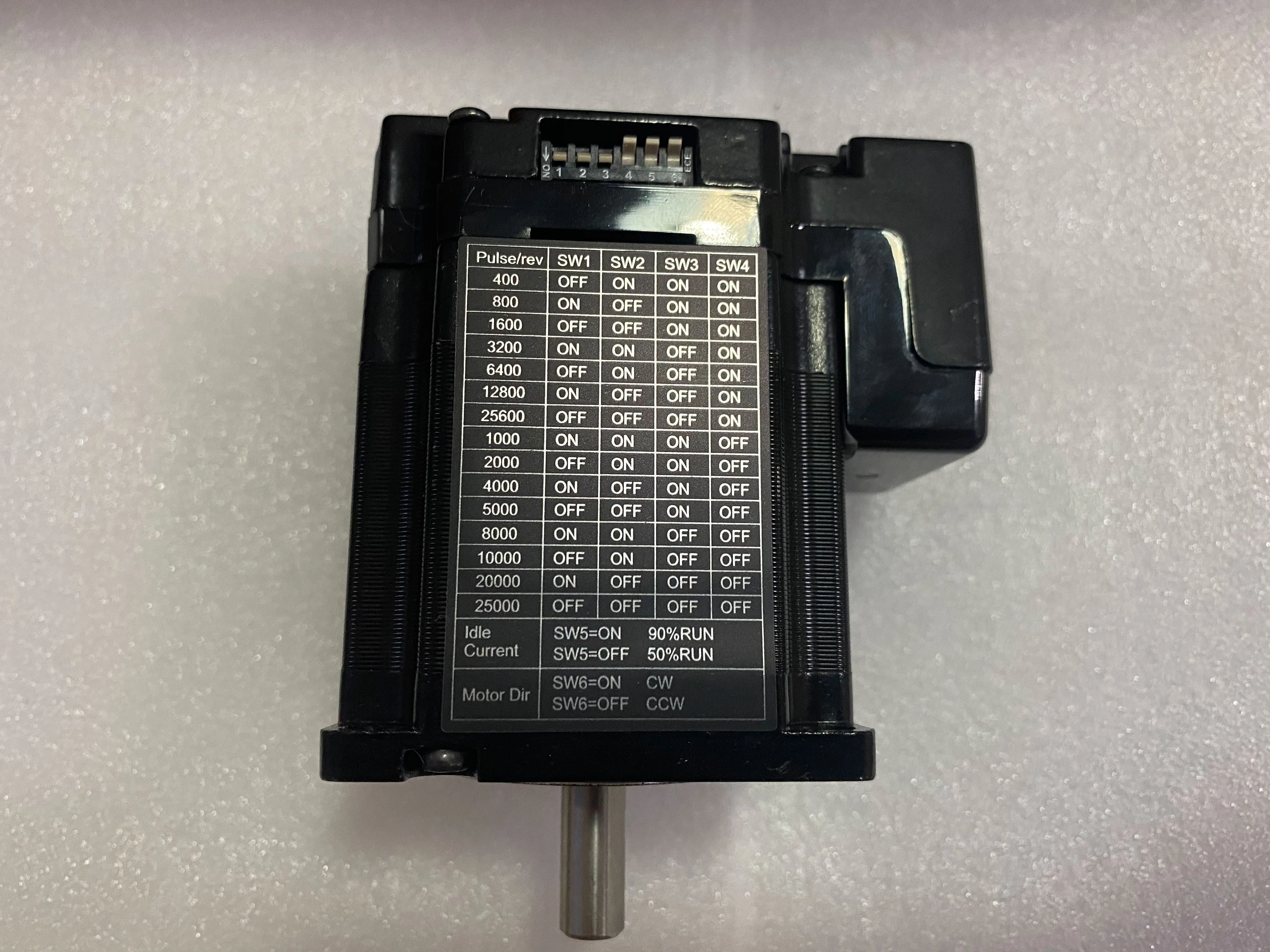

4. Subdivision setting: 15 dial switch settings

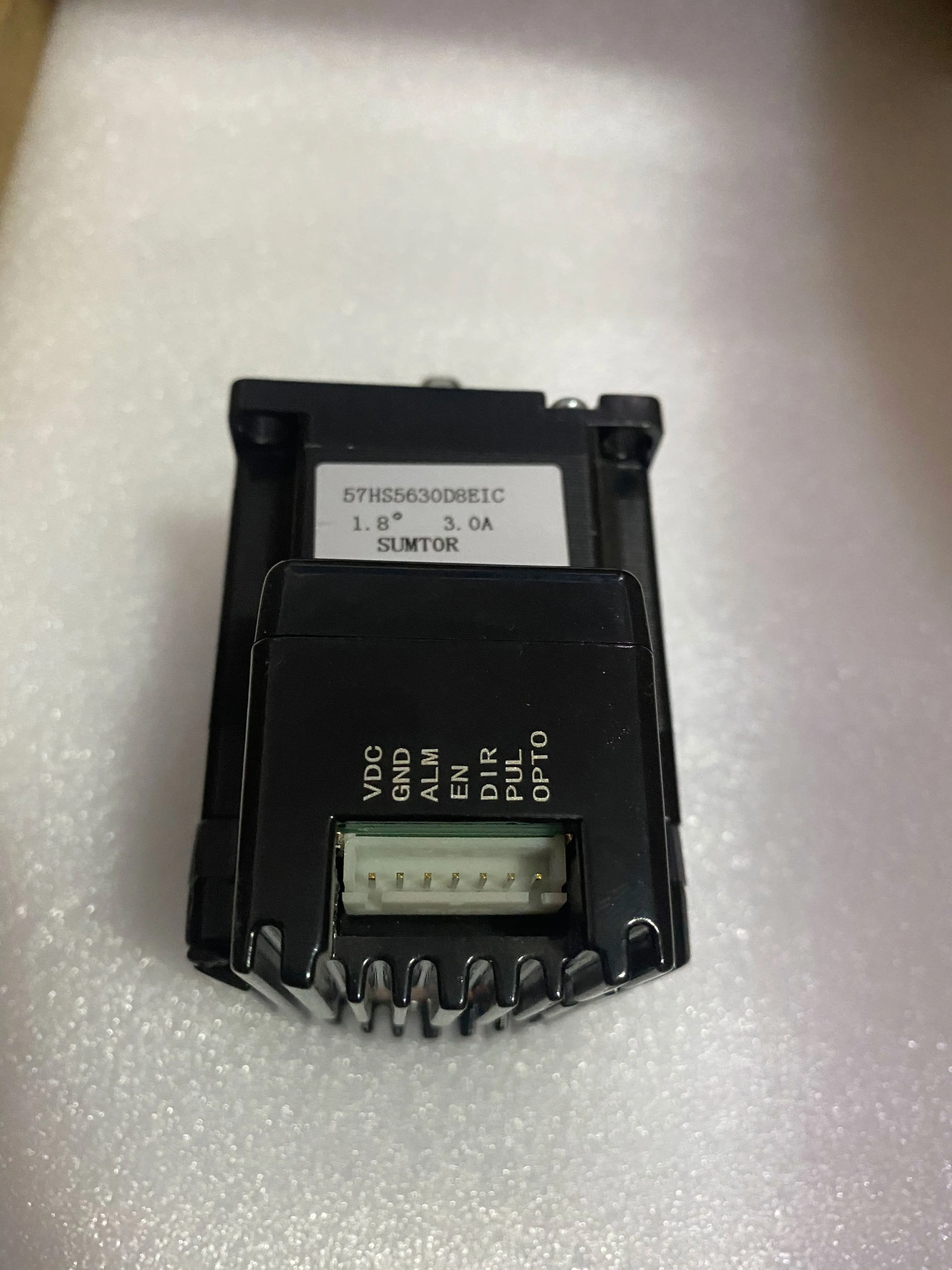

5. Control signal: PUL & DIR; offline signal; alarm output
6. Drive mode: bipolar constant current chopping current control
7. Idle current: 50% of current setting
8. Use environment: 0~40°C, no frost, 5.9m/s2
9. Storage environment: -20~80 °C, avoid sun exposure

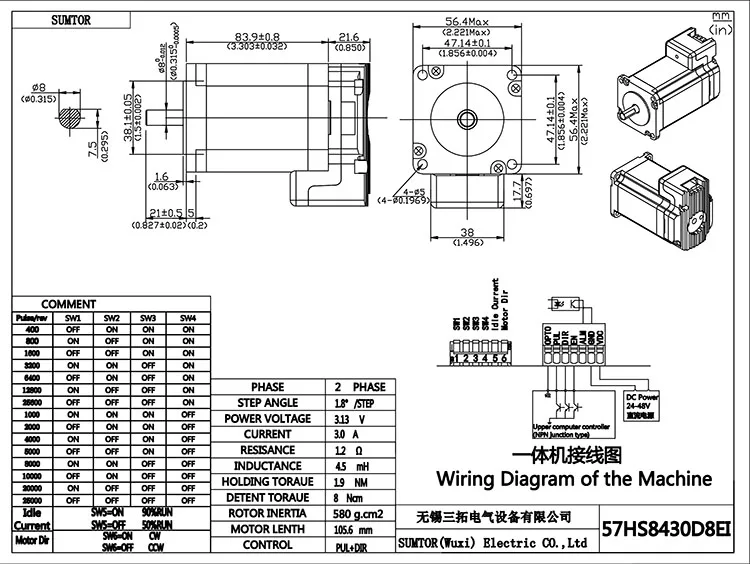

Product Paramenters

Installation method

Winding

Stator waveform caheck

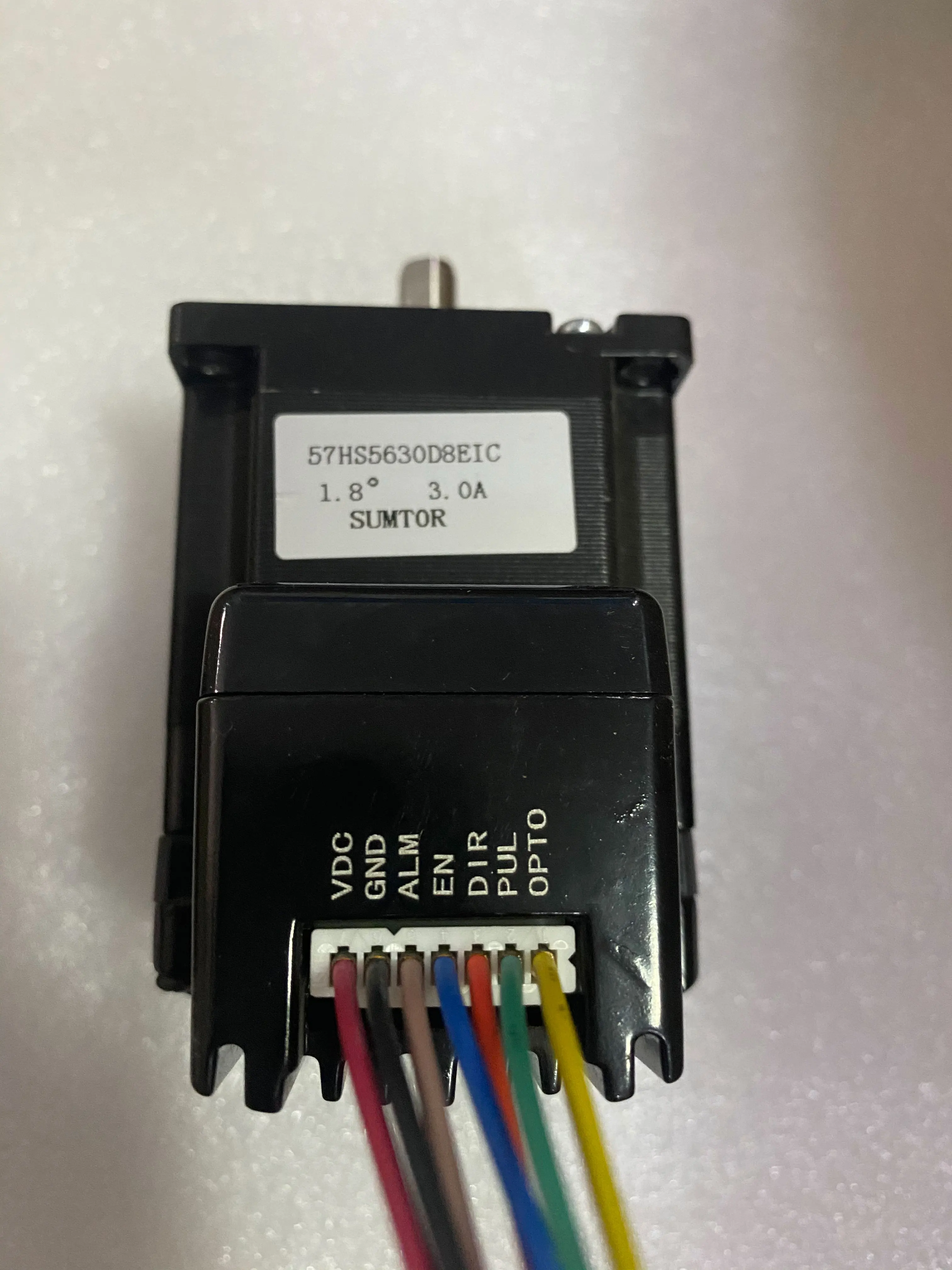

Wiring

Magnetizing

Characteristics check

Shaft height check

Visual inspection

Labelling

Packaging
Application Areas

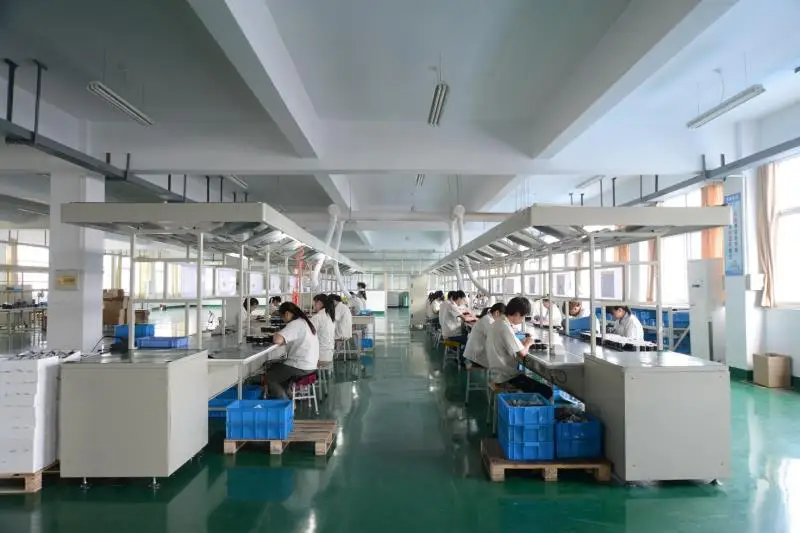

Our Company



Exhibition picture



Our certification






Customer Feedback

Package and Delivery



Tips:
1.Shipping without customs declaration can be delivered to the door (excluding import duties,DDP)
2.Air to the airport(not responsible for import declaration)
3.Express to the door(Not responsible for import customs clearance)
