42HS4013A4-XG50 ratio 50:1 with nema 17 40mm dc planetary gearbox stepper with gear motor

  • 2 - 9 Pieces
    $56.50
  • 10 - 19 Pieces
    $55.00
  • 20 - 49 Pieces
    $54.00
  • >=50 Pieces
    $53.00
Step Angle(degrees):
1.8 Degree
Holding Torque:
40N.cm
Lead Time:
Quantity(Pieces) 1 - 20 21 - 50 51 - 100 >100
Est. Time(days) 14 20 30 Negotiable
Customization:
Customized logo (Min. Order: 10 Pieces)
Samples:
$55.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Sumtor
Model Number:
42HS4013A4-XG50
Phase:
2
Type:
Hybrid
Current / Phase:
1.3A
Certification:
ce, RoHS
Name:
Planetary gearbox motor
Model:
42HS4013A4-XG50
rate:
50:1
Input flange:
Aluminium
Max input speed:
5000rpm
Length:
41mm or 51mm
Rated input speed:
3000rpm
Weight:
0.4KG or 0.6KG
Product Certification certification
RoHS Certified.
Valid from 2014-05-19 until 2049-12-31
Supply Ability
Supply Ability:
500 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
6pcs in one carton
16 carton in one pallet
Port
Shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 20 21 - 50 51 - 100 >100
Est. Time(days) 14 20 30 To be negotiated
Video Description

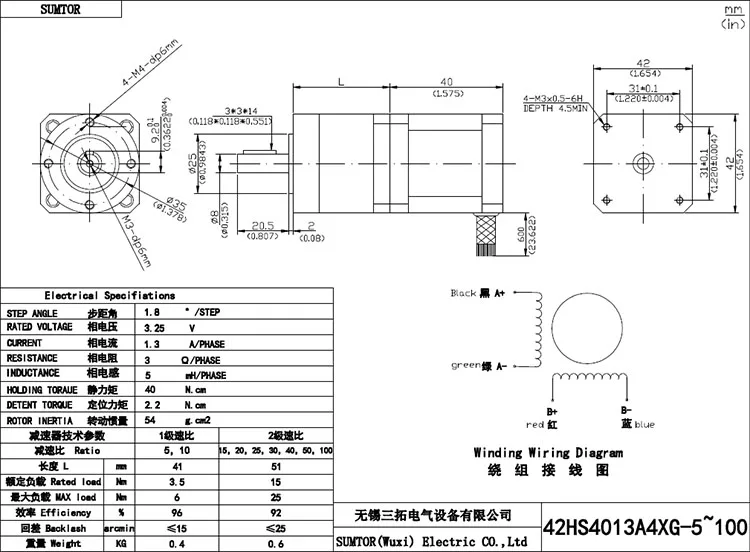

42HS4013A4-XG50 ratio 50:1 with nema 17 40mm dc planetary gearbox stepper with gear motor
Product Description

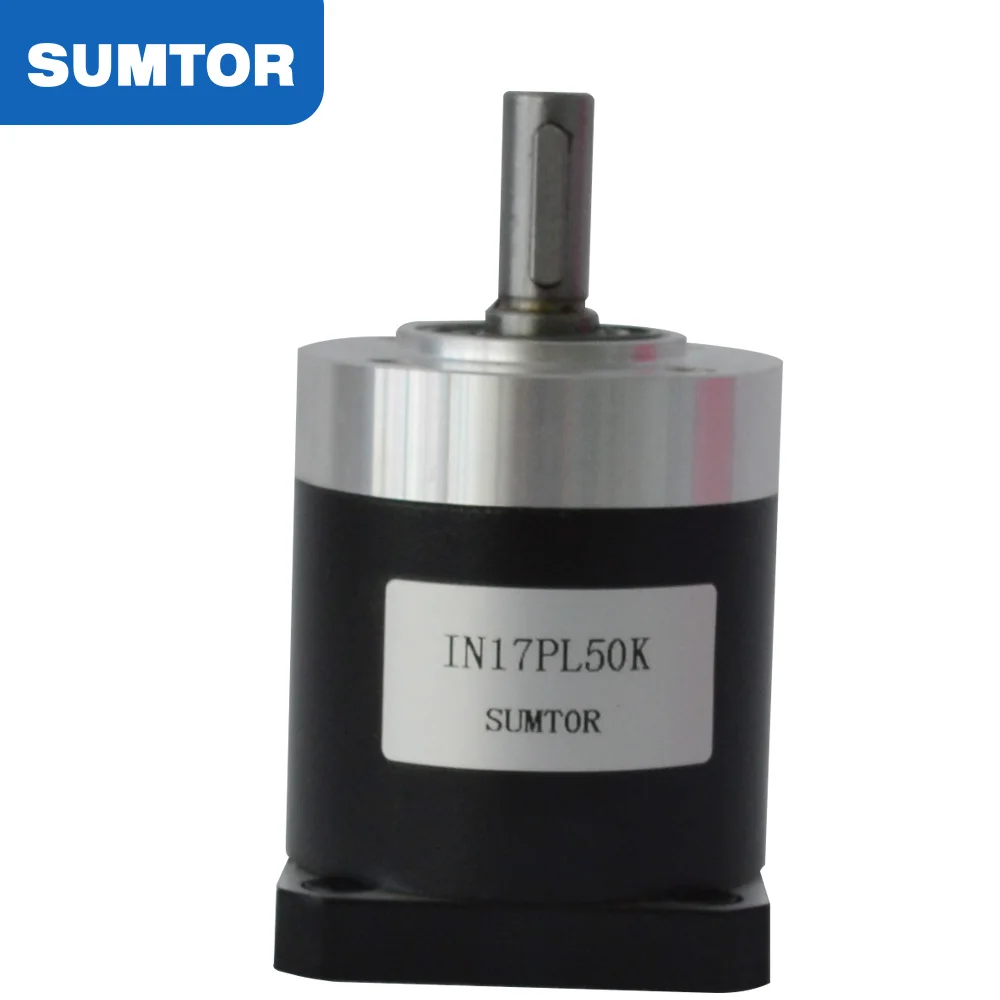

IN17PL10K ( nema 17 planetary gearbox rate: 10:1)
With ratio 04,05,10,15,20,30,40,50,100
with  economic model and high precision type

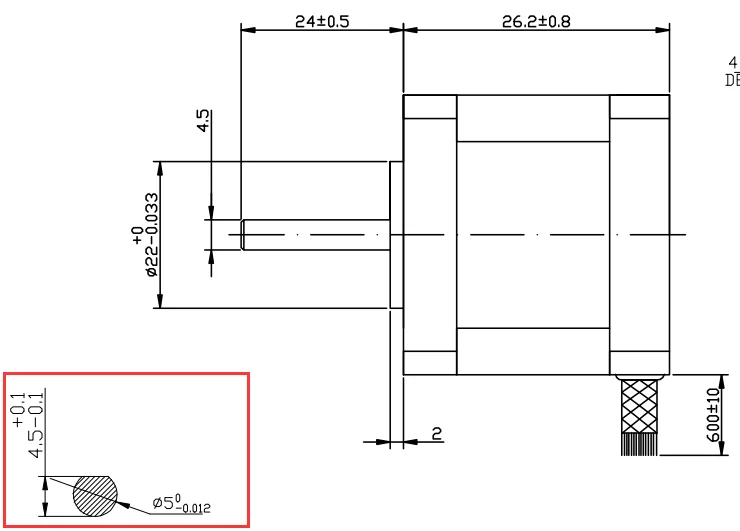

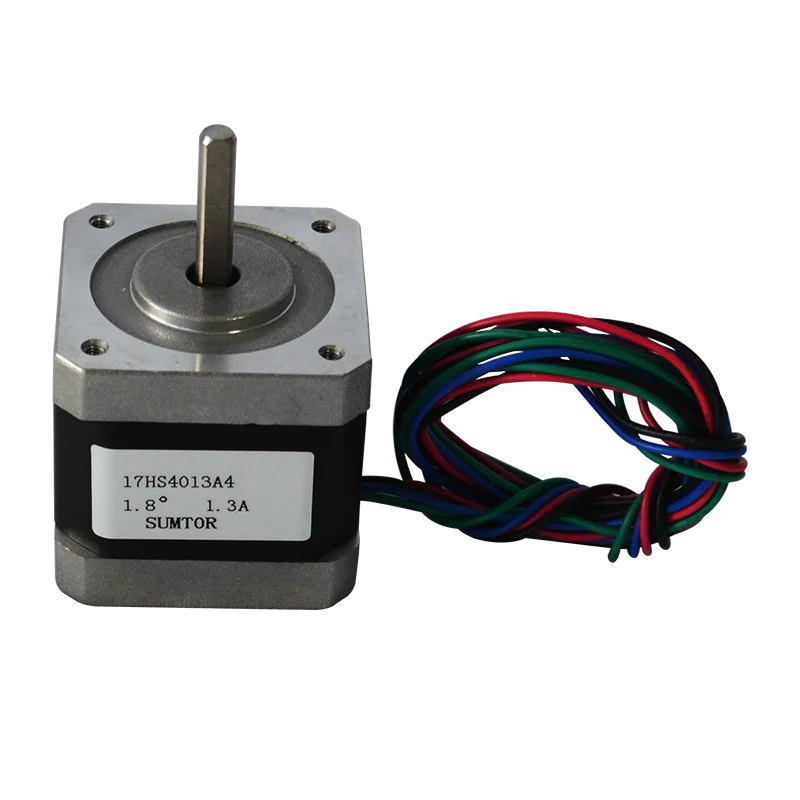

42HS4013A4(2.2N.cm with 1.3A)


1.NEMA 42 planetary gear reducer 2.Rate 10:1 3.Speed 600-800RPM High precise planetary reducer gearbox. Ratio include:1:5 1:10 1:15 1:20 1:25 1:30 1:40 1:50 1:100. Mating motor : 42HS4013A4,42HS4813A4,42HS6015A4,42HS6315A4. Mating driver: M420B M415B



Application Areas
Production process
winding line
stator waveform check
wiring
R cover assembly
F cover assembly
driver a screw
magnetizing
characteristic check
axis height check
visual inspection
attach a label
packaging
