2 Phase Nema 34 Hybrid Stepper Motor/Stepping Motor

FOB Reference Price:Get Latest Price
$8.80 - $9.90 / Piece | 1 Piece/Pieces (Min. Order)
Step Angle(degrees):
1.8°
Holding Torque:
1.1N.m
Lead Time:
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 5 Pieces)
Report Suspicious Activity
Overview
Quick Details
Warranty:
3months-1year
Place of Origin:
Jiangsu, China
Brand Name:
Sumtor
Model Number:
57HS5630A4
Phase:
2
Type:
Hybrid
Current / Phase:
3A
Certification:
ce, RoHS, CE ROHS
Phase Resistance:
0.8Ω
Phase Inductance:
2.4mH
Detent Torque:
3.5N.m
Rotor Inertia:
280g.c㎡
Motor Length:
56mm
Lead Wire(No.):
4
Motor Weight:
680g
Supply Ability
Supply Ability:
2000000 Piece/Pieces per Year
Packaging & Delivery
Port
Shanghai Port
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 7 To be negotiated
Product Description
57HS760A4/A4D8 stepper motor include : 6.35mm 8mm 10mm 11mm shaft ;  Single axis and double shaft ; 4 wire 6wire and 8wire .
Step Angel
1.8 °
Current
3.0 a
Resistance
1 Ω
Holding Torque
1.8 N.m
Lenth
76 mm
Weight
1050 g

57HS7630B4/B4D8

double shaft
shaft 8mm or 6.35mm
shaft lenth 22mm

57HS7630A4-11

single shaft
shaft length 37mm
shaft 8mm

57HS7630A4D10

single shaft
shaft 10mm
shaft length 22mm
Direction for use
使用说明
Widely used in ATM machines,inkjet printers,cutting plotters,photo machines,spraying equipment,medical instruments and equipment,computer peripherals and mass storage equipment,precision instruments,industrial control systems,office automation,robotics and other fields,especially suitable for stable operation,low noise,applications with fast response,long life and high output torque.
  • Advantages of stepper motors

1. The angle of rotation of the stepper motor is proportional to the number of pulses; 2. The motor has the maximum torque when it stops. 3. Since the accuracy of each step is 3%-5%, and the error of one step is not accumulated to the next step, there is better positional accuracy and repeatability of motion; 4. Excellent start and stop and reverse response; 5. Since there is no brush, the reliability is high, so the life of the motor depends only on the life of the bearing; 6. The response of the motor is only determined by the digital input pulse, so open loop control can be used, which makes the structure of the motor relatively simple and the control cost is low; 7. It is also possible to connect the load directly to the rotating shaft of the motor with a very low synchronous rotation; 8. Because the speed is proportional to the pulse frequency, there is a wide range of speeds.
Detailed Images

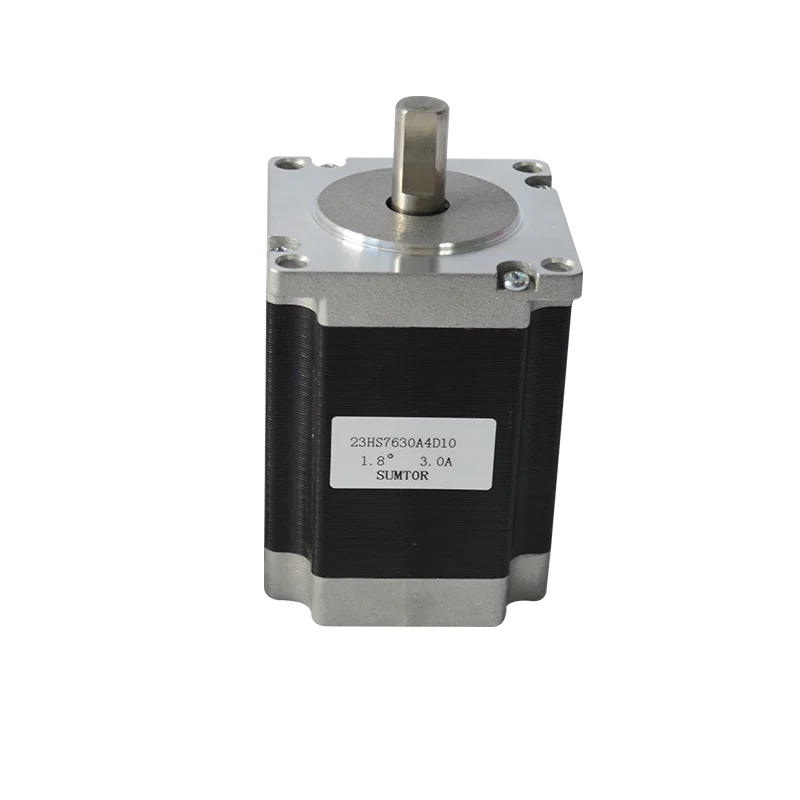

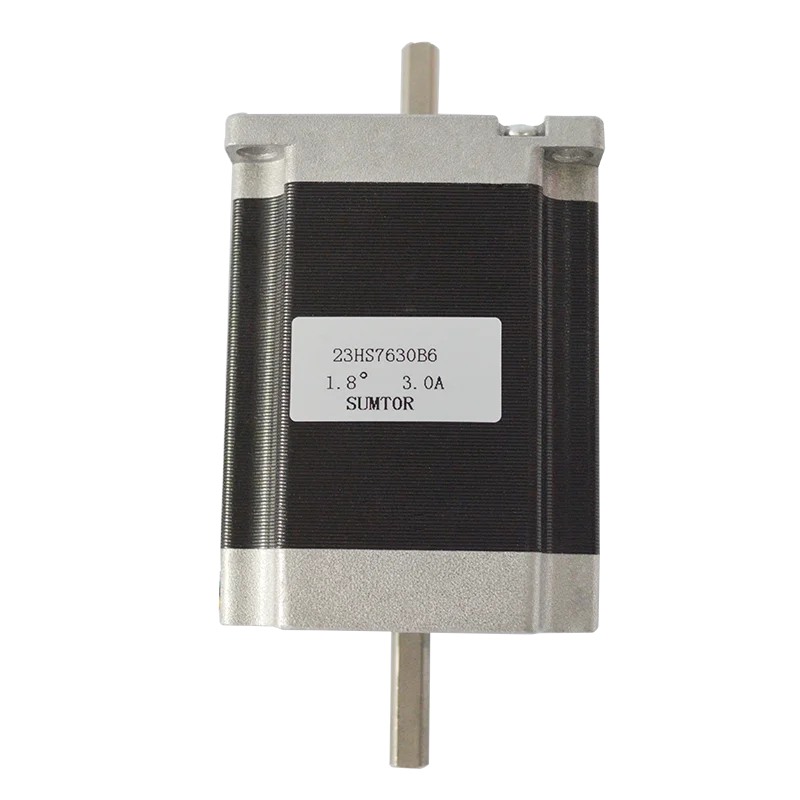

Stepper motor details images,including axes,end faces, outlets,etc. Stepper motor details images,including axes,end faces, outlets,etc.
Size Information
Size Chart of This Design
Model
Stepper Angle
Current
Shaft
Shaft Length
Wire
Holding torque
57HS7630A4
1.8°
3 a
6.35 mm
22mm
4
1.8N.m
57HS7630A4D8
1.8°
3 a
8mm
22mm
4
1.8N.m
57HS7630A4D10
1.8°
3 a
10mm
22mm
4
1.8N.m
57HS7630A4-11
1.8°
3 a
8mm
37mm
4
1.8N.m
57HS7630A4J-3
1.8°
3 a
11mm
22mm
4
1.8N.m
57HS7630B4
1.8°
3 a
6.35mm
22mm
4
1.8N.m
57HS7630B4D8
1.8°
3 a
8mm
22mm
4
1.8N.m
57HS7630A6
1.8°
3 a
6.35 mm
22mm
6
1.8N.m
57HS7630A8
1.8°
3 a
6.35 mm
22mm
8
1.8N.m
Related Products
Packing&Shipping
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
After Sales Service
After Sales Service
Warranty: 1 Year
Provided:Online support, Video technical support
Company Introduction

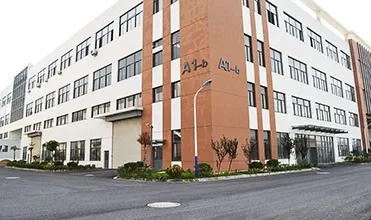

Established in 2011,located at Wuxi,the central area of Yangtze River Delta economic zone. Sumtor(Wuxi) Electric CO.,Ltd is a professional company to produce stepper motors,servo motors, stepper motor drivers,electric motor controllers,engraving machine and some other items,which is near to Shanghai. It only takes 50 minutes from Wuxi to Shanghai by train.

Our Services & Strength

We have 10 years of production history, 6 professional technicians, 18 sales staff, and 4 professional after-sales teams, hoping to bring you a good shopping experience.
FAQ
1、What is the motor speed?What is the motor speed?

Under the premise of dynamic load with stepper motor, the fastest is 600-800 rpm for one minute, the best working speed is 200-400 rpm for one minute. The faster the speed, the smaller the torque, the maximum torque is static torque, ie the speed is 0. The moment of time.
