nema 34 closed loop stepper motor 8.5N.M with its driver HSC86A

  • 1 - 9 Pieces
    $81.00
  • 10 - 99 Pieces
    $80.00
  • >=100 Pieces
    $78.00
Step Angle(degrees):
1.8°
Holding Torque:
8.5N.m
Lead Time:
Quantity(Pieces) 1 - 20 21 - 50 51 - 100 >100
Est. Time(days) 14 20 30 Negotiable
Customization:
Customized logo (Min. Order: 5 Pieces)
Samples:
$80.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
sumtor
Model Number:
86HS118ES+HSC86A
Phase:
2
Type:
Hybrid
Current / Phase:
6A
Certification:
ce, RoHS
Inductance:
4.9mH±20%
Insulation Resistance:
100MOhm(500VDC)
Dielectric strength:
500VDC
Product Keywords:
Nema34 High Precision Closed Loop Motor
Testing Voltage:
60V
Testing Driver:
HSC86A
Testing Model:
16 subdivision
Axial Play:
Max 0.075mm(Load 920g)
Radial Play:
Max 0.025 (Load 450g)
Holding torque:
8.5N.m
Product Certification certification
RoHS Certified.
Valid from 2014-03-18 until 2049-12-31
Packaging & Delivery
Packaging Details
6pcs in one carton
16 carton in one pallet
Port
shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 20 21 - 50 51 - 100 >100
Est. Time(days) 14 20 30 To be negotiated
Title

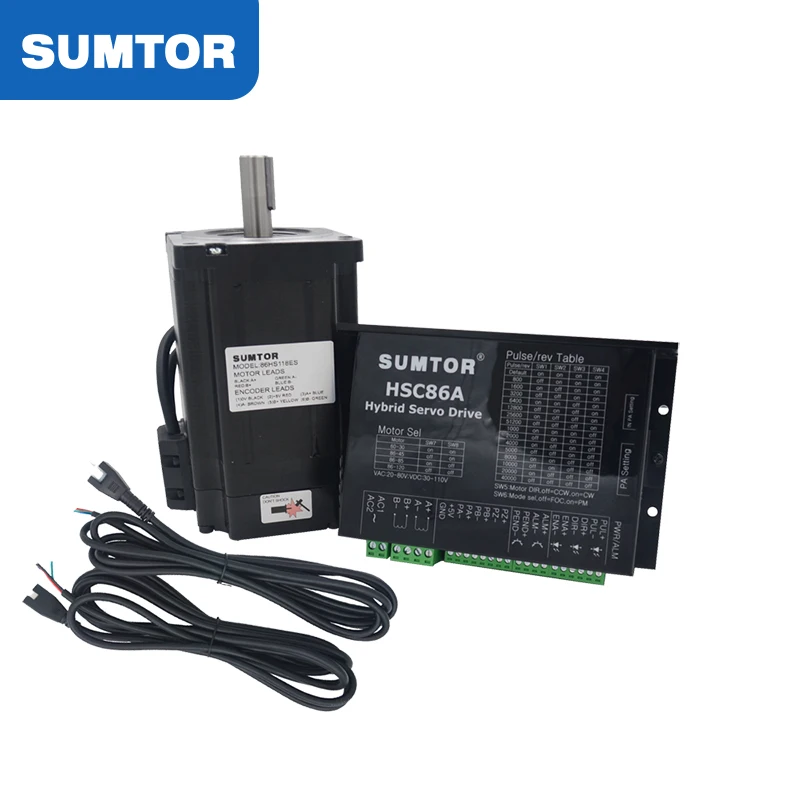

86HS118ES closed loop stepper motor with its driver HSC86A


Product details

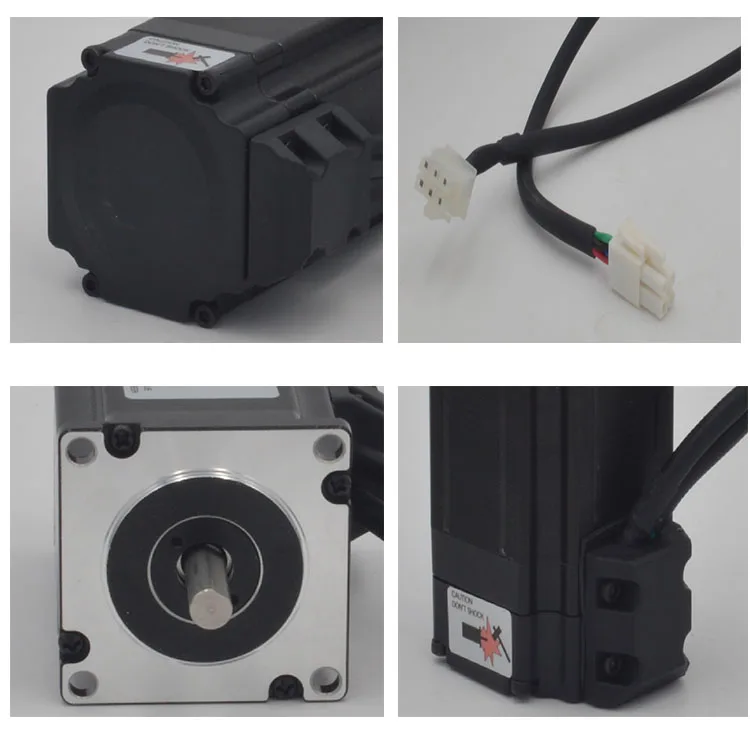

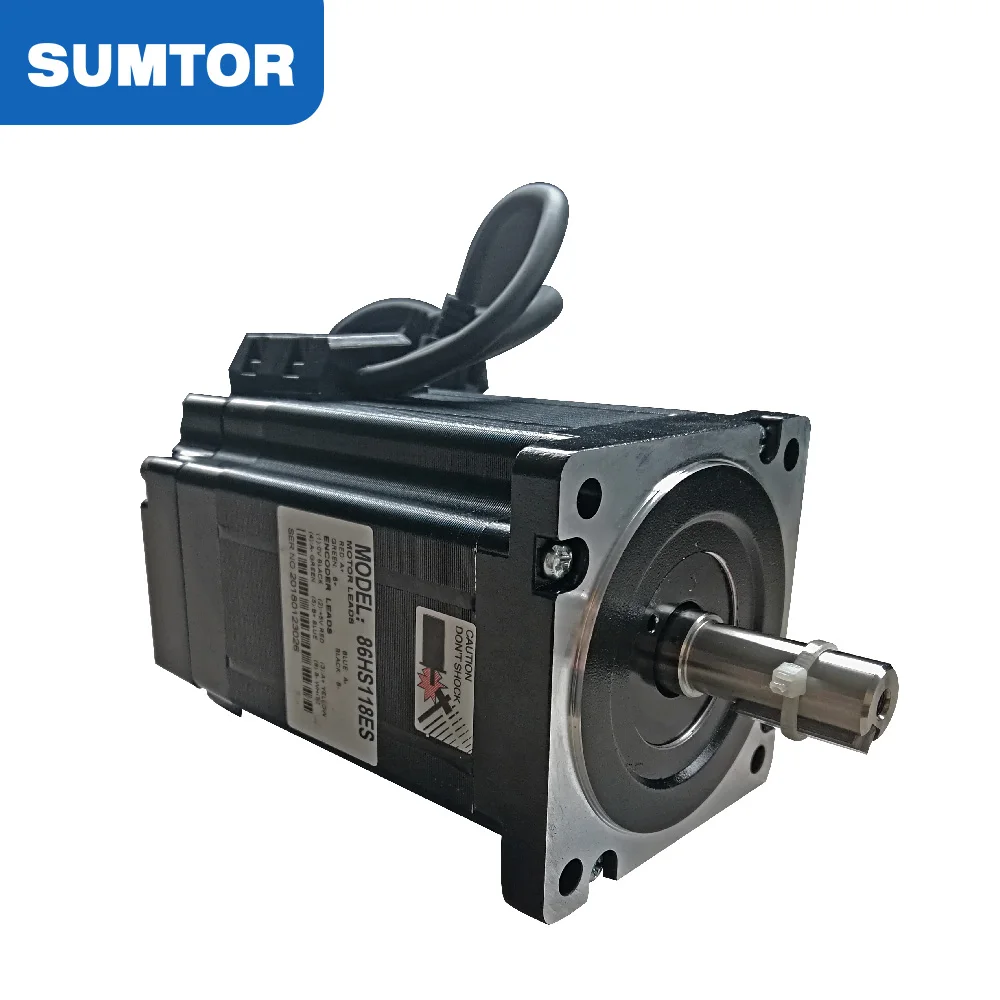

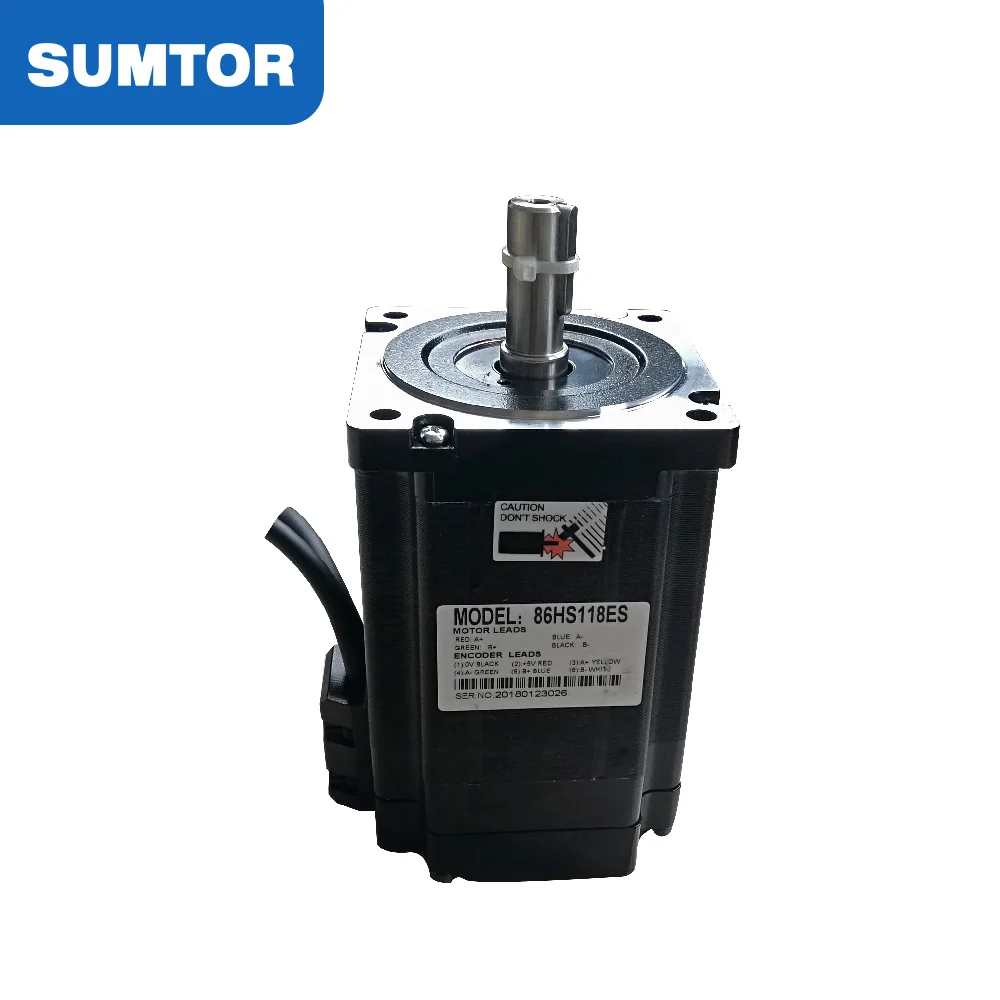

86HS118ES
Features:
1.NEMA 34 close loop stepper motor with 8.5N.m
.Testing Current 6A(average)
3.Speed 300-2100RPM
4. We suggest that this kind nema 34 close loop stepper motor should be matches with the HSC86A driver
Quality assurance:
1.All stepper motor have CE and ROHS certification
2.All motors are tested by a toasting machine for 72 hours
3.All the motors will be shipped after testing.

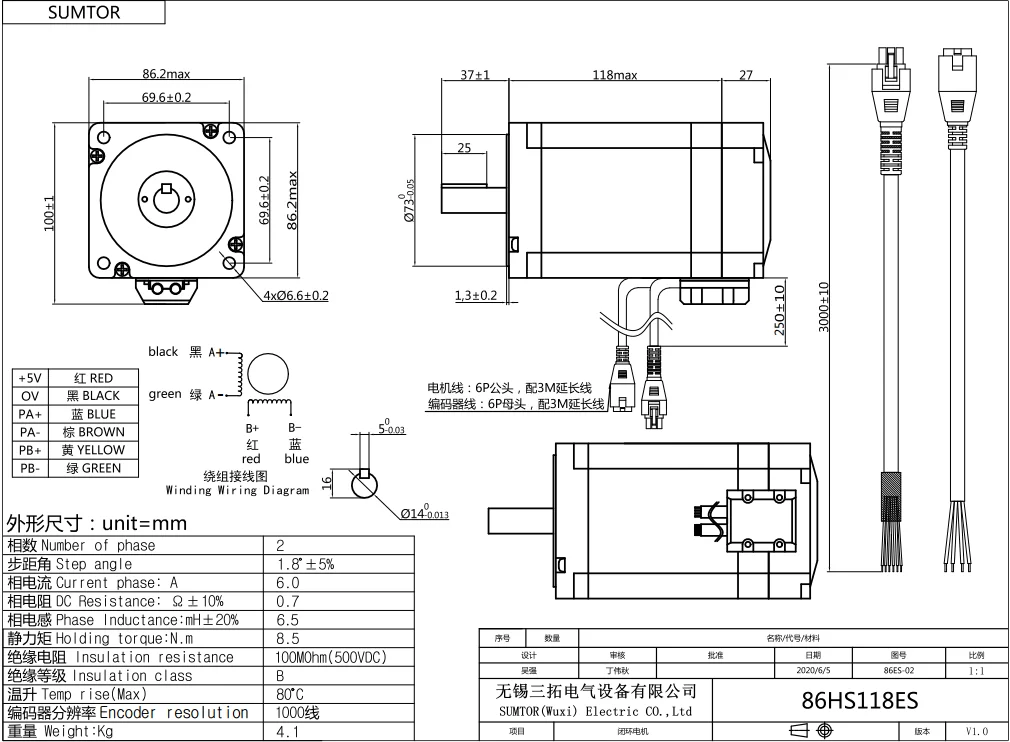

Product Drawing
Related Products

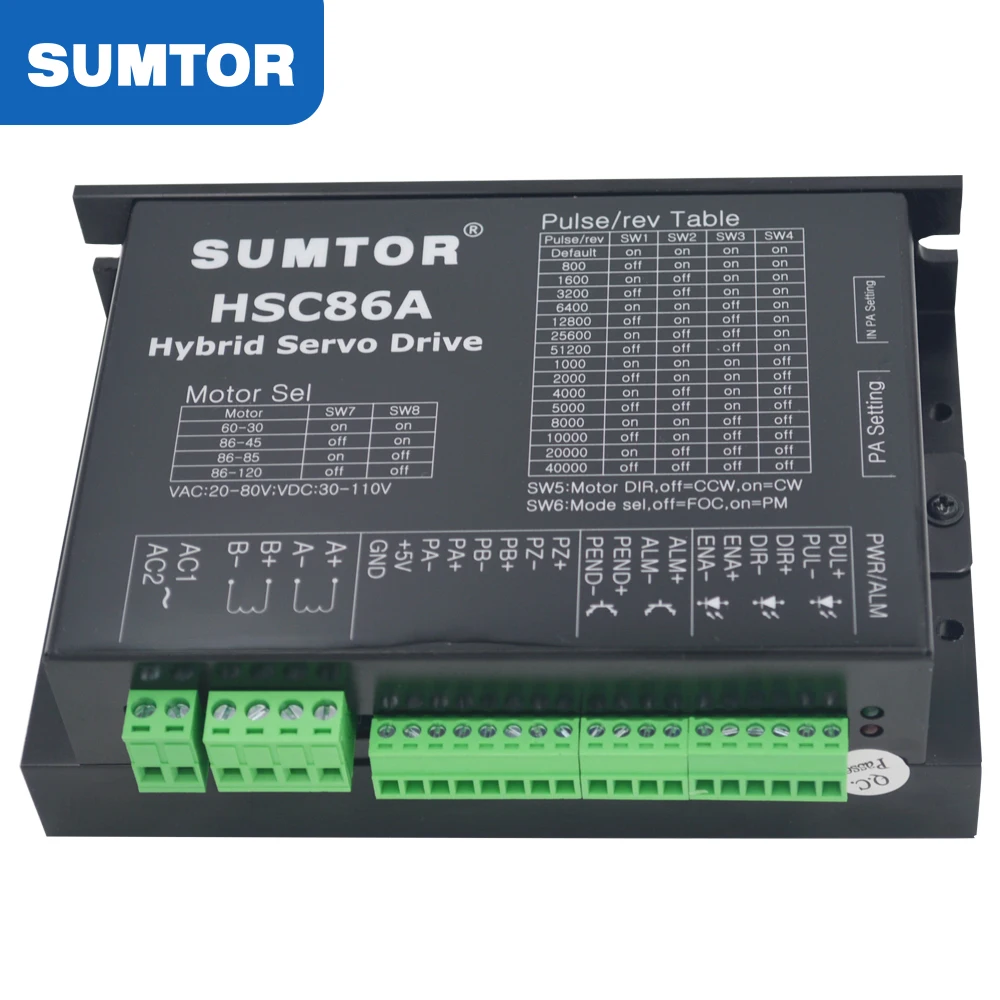

HSC86A
Products Description
● Working voltage: AC and DC universal, AC input voltage 24 ~ 80VAC, recommended
working voltage 60VAC
Maximum continuous output current 8.0A (advanced stepping servo overload capability)
Accepts differential and single-ended pulse / direction commands, and
has three control modes of position / speed / torque
Adopt FOC magnetic field positioning control technology and space vector pulse width
modulation (SVPWM) closed-loop control technology
Adopt advanced variable current technology and frequency conversion technology,
effectively reduce the heat of motor and driver
The number of pulses per revolution can be set by debugging software or code extraction
(subdivision)
With over-voltage,under-voltage, over-current and over-tolerance protection functions
Single / double pulse mode, optional pulse effective edge
The maximum pulse frequency of the control command is 500KHz (the factory default is
200KHz)
Pulse, direction and enable signal input interface level is compatible with 4.5-28V

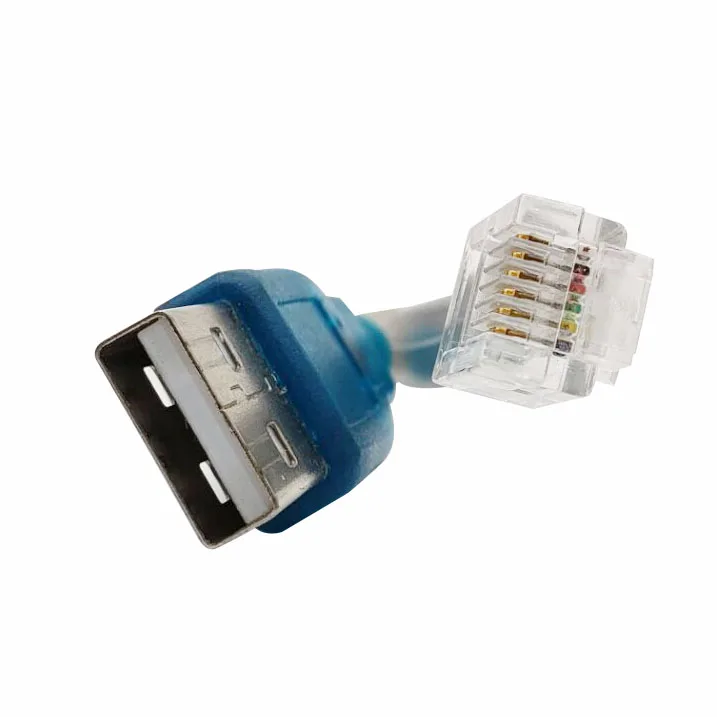

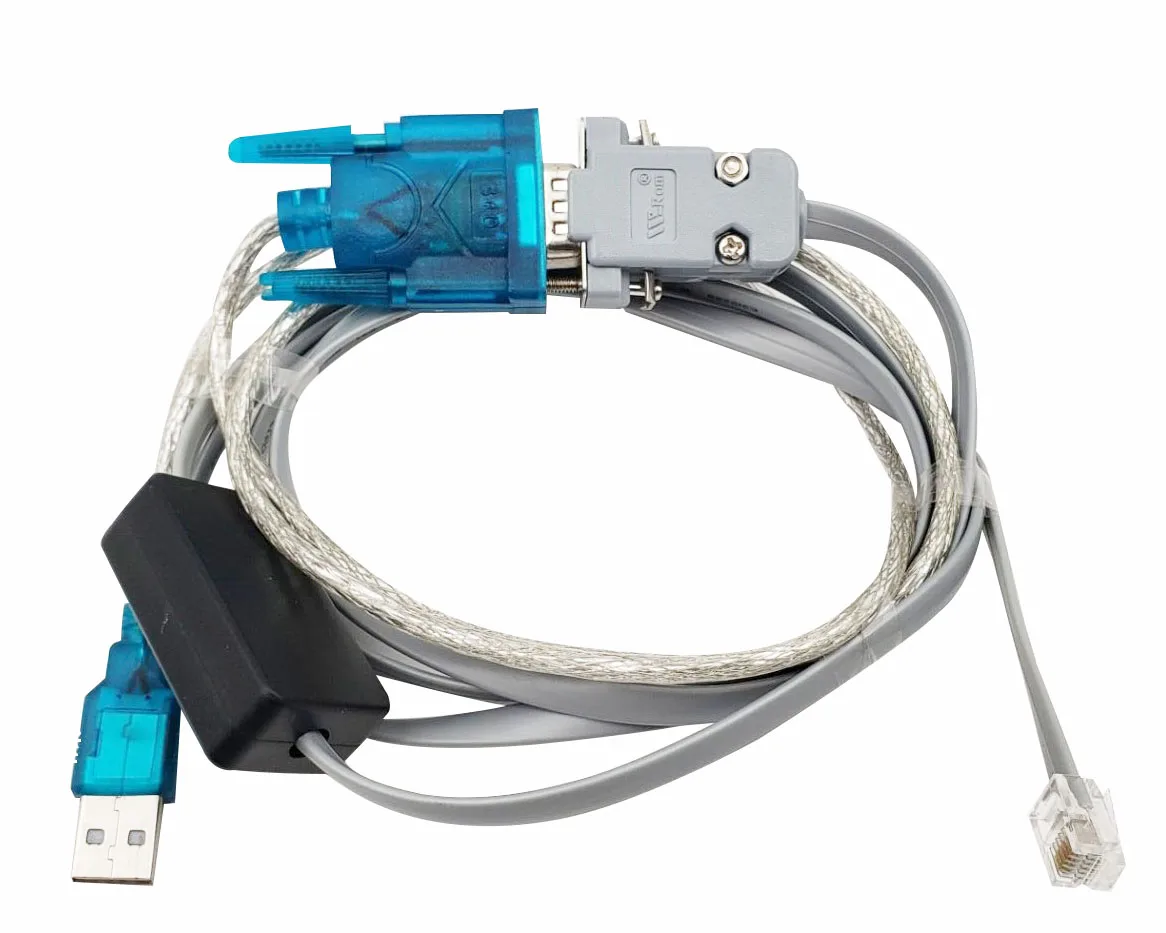

With serial port RS232 debugging function, but need to use the company's special serial
debugging cable
Performance: stable speed, small overshoot, small tracking error, low heating of motor

and driver
